NDI Poe Ptz Video Conference Camera
USB 3.0 auto tracking ptz camera;
20x optical zoom;
poe auto tracking ptz camera;
With 61 degree wide range fields of view;
NDI model for option.
Description
Products Description:
The Tongveo VL20N NDI NDI poe ptz video conference camer, with 20x optical zoom, eqiuipped with latest NDI/HX, SDK, PoE, USB 3.0, IMX327 1/2.8" CMOS Sony Sensor, 1080P full HD resolution. It delivers sharp video, outstanding color, and exceptional optical accuracy, built-in AI technology optimizes light balance to emphasize faces and render natural-looking skin tones even in dim or backlight conditions; compatible with ZOOM. GOOGLE TEAMS, VMIX, OBS and other audio & video conference system.
Details Images:
The VL20N NDI poe ptz video conference camera maintains the series' classic and visually appealing design, 1/2.8" HD CMOS sensor, effective pixels up to 2.38 Megapixels, max resolution up to 1920×1080,True to Life Colors and pretty picture quality, 1080P video signals up to 60pfs, presenting clear and realistic HD video, 20x Optical Zoom with 63° field of view, Accurate and stable autofocus. 20x Zoom live streaming camera is suitable for Church, Worship, Conference, Events, Online Teaching, Sport, Hospital, Live Broadcast Studio streaming
This NDI Poe Ptz Video Conference Camera features Al Humanoid Auto Tracking technology, leveraging the latest AI algorithms for swift and precise tracking. Presenter Tracking mode offers strong locking andanti-interference capabilities, allowing presenters to freely interact with their audience.
AI Functions
Uninterrupted Tracking
Dynamic AI Auto-Framing
Open AI over IR remote
Open AI over Web UI
Multiple-interface, more flexible personalized options for you; along with USB 3.0, HDMI and RJ45, VL20N NDI poe ptz video conference camera bring great flexibility to video conferencing options. USB 3.0 output offers a transfer rate that is 10 times faster than USB2.0, so this camera could greatly improve the meeting experience and avoid video freezes. If you want to use large-screen TVs, the VL20N NDI ptz camera also has HDMl ports for you to choose.
The NDI ptz video conference camera has USB HDMI, and IP video outputs, which can simultaneously output 1080p video at 60fps from HDMI,USB and IP streaming, effective transmission distance up to 328ft via Ethernet, Support PoE (Power over Ethernet),you need a PoE switch to connect, Video Compression Format: YUV, MJPEG, H.264 and H.265. the PTZ camera can live streaming on Facebook, Youtube, and Compatible with Zoom, OBS, Vmix, Temas, Hangouts, GoToMeeting conferencing Software
VL20N NDI poe ptz video conference camera compatible with most Video and audio conference system, such as Skype, MS Teams, Google meet, Webex, Vmix, Zoom, Youtube and Facebook; can be used for video conferencing, church live streaming, colleague lecture, medical care, church and digital court; Compatible with most video and audio software;
Technical Specifications:
|
Model |
VL20N NDI poe ptz video conference camera |
|
Sensor |
Sony IMX327 1/2.8" CMOS |
|
Effective pixel |
2.07MP |
|
Video system |
HDMI：1920*1080P@60/59.94/50/30/29.97/25fps; 1280*720P@60/59.94/50/30fps USB3.0：H.264: max to 1080P@60fps; H.265: max to 108P@60fps; MJPG: max to 1080P@60fps; NV12: max to 896P@60fps; YUY2: max to 896P@60fps |
|
Zoom |
20x optical zoom |
|
Lens |
f=4.95mm~99mm |
|
Aperture |
F1.6-3.5 |
|
Diagonal Angle |
61°(W)-3.64°(T) |
|
Video output |
USB 3.0, HDMI |
|
Backlight Compensation |
Support |
|
SNR |
>50dB |
|
Digital Noise Reduction |
2D & 3D Noise Reduction |
|
Signal standard |
NTSC/PAL |
|
I / O Interface |
|
|
Video Interfaces |
HDMI, TYPE-C, RJ45 |
|
Video Compression Format |
H.264, H.265, MJPG, YUY2 |
|
LAN |
10M/100M adaptive Ethernet port; Support POE IEEE802.3af |
|
Network Protocol |
NDI|HX2,RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP |
|
Control protocol |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
Control Protocol |
UVC1.1 |
|
Minimal Illumination |
VISCA/Pelco-D/Pelco-P; Baud Rate: 38400/9600/4800/2400 |
|
Control Interface |
≥RS232 (input only), RS485, TYPE-C(UVC1.1), RJ45 |
|
PTZ Parameter |
|
|
Pan/Tilt Rotation |
±175°, -90°～+90° |
|
Pan Control Speed |
0.1 -80°/sec |
|
Tilt Control Speed |
0.1 -60°/sec |
|
Preset Number |
User can set up to 255 presets (10 presets by IR remote) |
|
Operation Systems |
Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.) |
Product Packaging & Shipping:
Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase orders, we will ship within 3-7 working days;
Packaging:
Foam packaging inside; standard carton packaging outside.

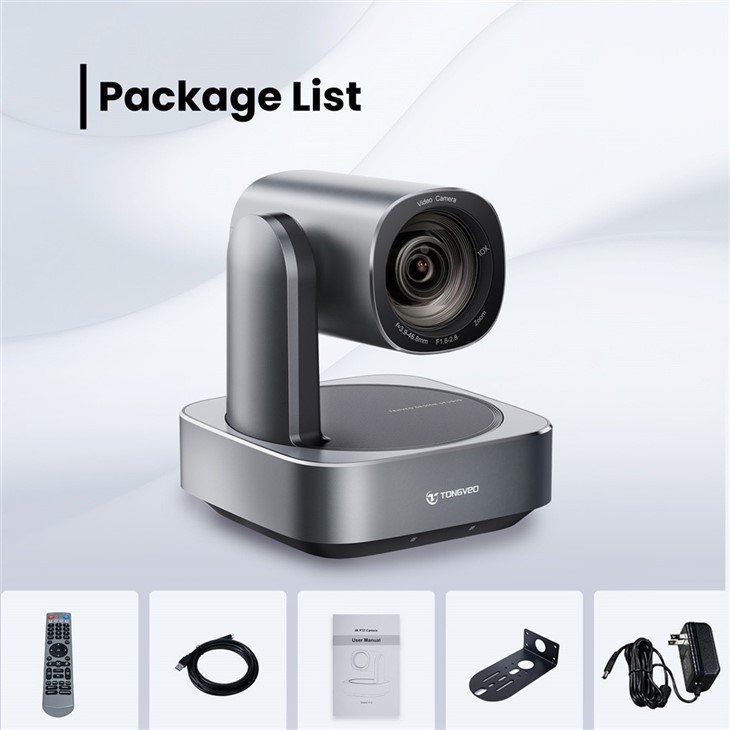

What's in the box?
The standard carton included with 1 pcs of camera, IR remote, USB cable, wall mount, power adapter, and user's manual;
why choose us?
Shenzhen Tongveo Video Technology Co., Ltd., established in 2013, is one of the leading suppliers of audio and video conferencing solutions in China. Tongveo is a R&D based manufacturer committed to designing, developing and producing affordable full HD video camera with stunning image quality for video collaboration, applied in video conferencing, audio conferencing, education, tele-medicine, broadcasting, recording, courtroom, public safety, church, live-event, Financial facility solution etc. All of our products are compliant with CE, FCC and RoHS standards. We have cooperated with suppliers from all over the world and have won a great reputation. By valuing the R & D department in our company, we are striving to provide better user experience.
one-stop solution
professional team
high quality
FAQ:
FAQ
Q: What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms,and we also provide 3x, 10x, 12x, 20x and 30x PTZ cameras for larger meeting rooms.
Q: Is it easy to operate?
A: Yes, easy to Plug-in, Driver free, Plug&Play
Q: What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q: Can I put my own logo on products?
A: Yes, We Provide OEM/ODM service, We accept customer's design, logo, label, package .etc
Q: How can we get a quote?
A: Contact us with specification: such as material, design, size, shape, color, quantity, surface finishing, etc.
Q: Who is SZ TONGVEO Video Technology co.,LTD?
A: SZ TONGVEO Video Technology co.,LTD focus on supplying competitive video & audio conference system, ptz video conference cameras, microphones and webcams. "Make any meeting easier and better" is its goal forever.
