USB HD PTZ Video Conference Cameras
USB/HDMI PTZ conferencing camera
3x zoom with super wide--93 degree FOV
All-in-1 video and audio conferencing solution
HD conferencing system camera
PTZ conferencing camera
Description
Products Description:
TONGVEO AI Auto-Tracking 3x Zoom PTZ Camera and Audio Conferencing System
TONGVEO conference room system combines 3x Zoom AI Auto-Tracking camera and Bluetooth speakerphone, which allows you to be seen, be heard, and speaker simultaneously during the meeting, which greatly improves conference efficiency.
4K Video and Audio Conferencing System
3x optical Zoom PTZ camera, with USB 3.0 and HDMI video outputs, which can simultaneously output 1920* 1080p HD images and videos at 60fps; can upto to 4K UHD video outputs from HDMI video output;
The camera adopts 1/2.8" HD CMOS with 8.29MP enhanced image sensor, supports horizontal rotation 350°, vertical 180°, and 93° wide field of view delivers brilliantly image resolution, while the full-duplex microphone array with echo cancellation picks up voices and delivers crystal-clear sound within a 16.4ft

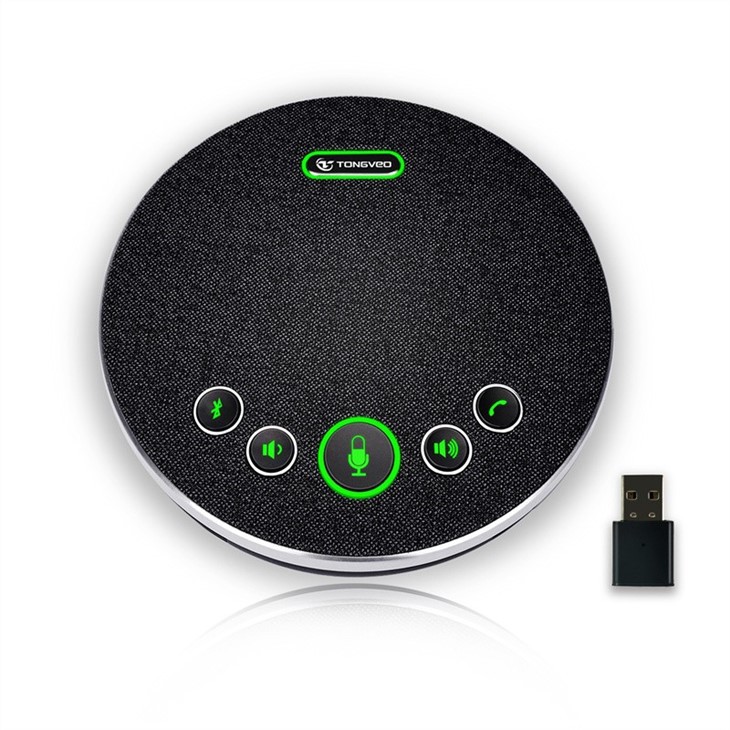

Great & Smooth Conference Experience
This Bluetooth conference Speakerphone with microphone can help focus on the conference systems, pick up sound distance 5M(16.4ft).
It adopts a hands-free microphone and hands-free speaker design, connected via USB, Bluetooth5.0, Dongle,no drivers need,built-in 2400mAh battery, long life can be 6-8 continuous work, it is suitable for a meeting room of 40 square meters and live meetings with 8-12 people.
AI auto-tracking PTZ Camera with USB3.0 HDMI Output
Leveraging advanced AI, Precise Humanoid & Face Recognition, our HDMI camera detects and locks onto subjects (lecturers, speakers) with precision, unlike others AI tracking cameras, our AI tracking PTZ webcam has improved tracking algorithm on both facial & humanoid tracking.
The PTZ camera seamlessly tracks targets, always maintaining a perfect view of the speaker or subject, and this camera supports HDMI 4k 30fps; and USB3.0 video outputs at 30FPS

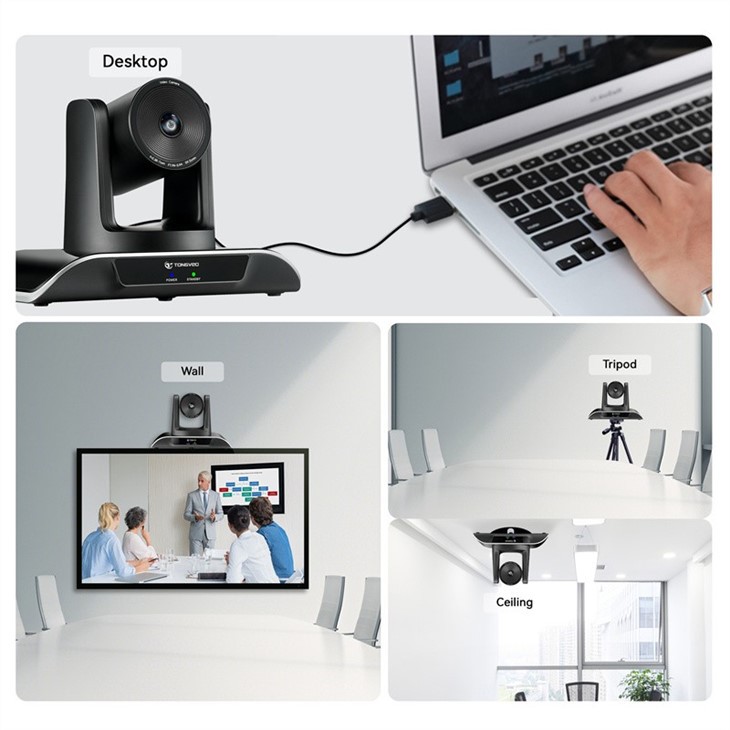

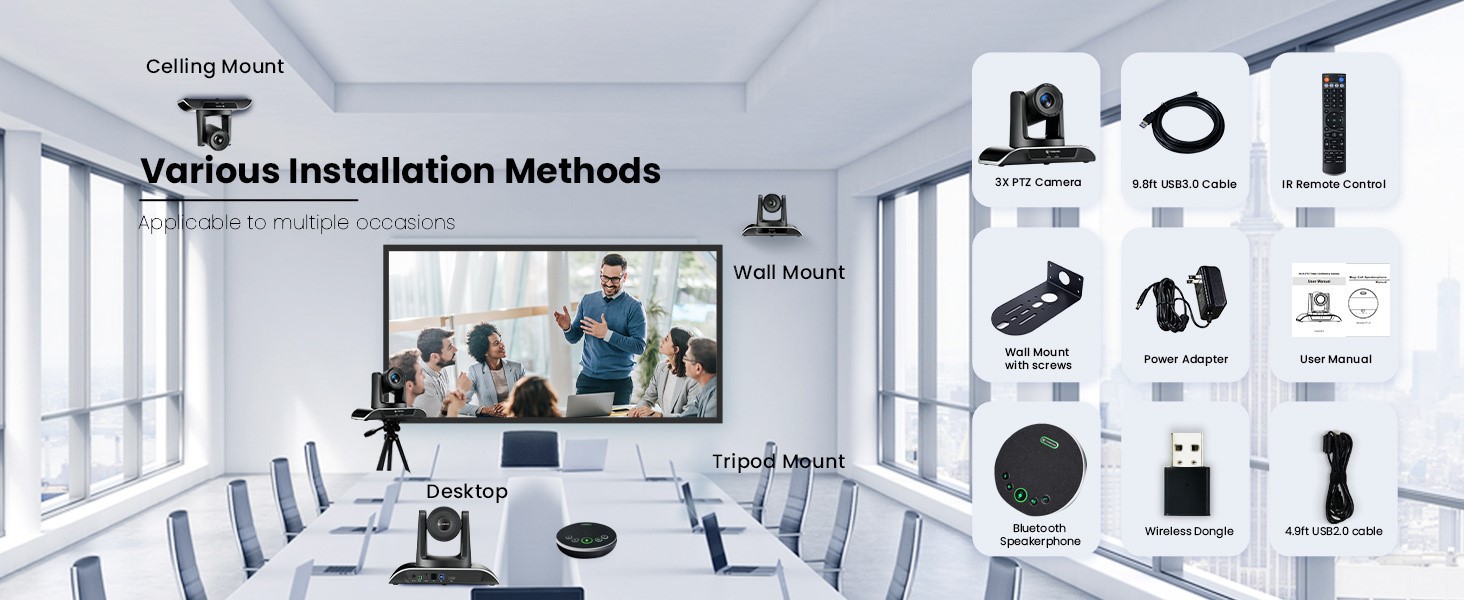

Easy Setup video conferencing
Launch video meetings with a plug and play USB 3.0 connection to your laptop, desktop, or connect directly to the Smart TV via DHMI cable to get high-definition uncompressed video, the conference microphone has connected the PC via USB, Bluetooth or wireless dongle, Anyone can easily set up this USB3.0 HDMI camera and control video conferencing or live streaming. widely used at video calls, video conferences, online courses, Tele-Medicine, remote training, etc
Technical Data:
| Model No. | VHD3H 4K | VHD12H | VHD20H |
| Image Sensor | 1/2.8'' SONY CMOS | 1/2.8'' SONY CMOS | 1/2.8'' SONY CMOS |
| Effective Pixels | 8.29MP | 2.07MP | 2.07MP |
| Video Signals | HDMI: 4KP30fps/4KP25fps/1080P30fps/1080P25fps/720P30/P25fps USB3.0: MJPG: max to 1080P@30fps YUY2: max to 720P@30fps |
HDMI: 1920*1080P@60/59.94/50/30/29.97/25fps, 1280*720P@60/59.94/50/30fps USB3.0: H.264: max to 1080P@60fps H.265: max to 1080P@60fps MJPG: max to 1080P@60fps YUY2: max to 720P@60fps |
HDMI: 1920*1080P@60/59.94/50/30/29.97/25fps, 1280*720P@60/59.94/50/30fps USB3.0: H.264: max to 1080P@60fps H.265: max to 1080P@60fps MJPG: max to 1080P@60fps YUY2: max to 720P@60fps |
| Lens & Aperture | F2.50-F3.4 | F1.8-F3.0 | F1.8-3.9 |
| Optical Zoom | 3x | 12x | 20x |
| Digital Zoom | / | 8x | 8x |
| Zoom Speed | 1~8 | 1~8 | 1~8 |
| Focal Length | f=3.5mm~10.5mm | f=3.4mm~40.9mm | f=4.72mm~94.4mm |
| Horizontal Angle | 83.0°~32.0° | 67.5°~7.6° | 54.8°~3.59° |
| Vertical Angle | 51.0°~20.0° | 40.18°~4.34° | 31.5°~2.03° |
| Diagonal Angle | 93.0°~39.4° | 75.4°~8.76° | 62.0°~4.1° |
| AI Support | Supported | Supported | Supported |
| AI Mode | Single-person tracking/Multi-person tracking | Single-person tracking/Multi-person tracking | Single-person tracking/Multi-person tracking |
| Minimum Illumination | 0.12lux | 0.14lux | 0.15lux |
| Shutter | 1/25s~1/10000s | 1/25s~1/10000s | 1/25s~1/10000s |
| White balance | Auto/Manual/Indoor/Outdoor/Specific color temperature/One-push | Auto/Manual/Indoor/Outdoor/Specific color temperature/One-push | Auto/Manual/Indoor/Outdoor/Specific color temperature/One-push |
| Backlight Compensation | Supported | Supported | Supported |
| Digital Noice Reduction | 2D&3D DNR | 2D&3D DNR | 2D&3D DNR |
| Video Encoding Format | H.264, H.265, MJPG, YUY2 | H.264, H.265, MJPG, YUY2 | H.264, H.265, MJPG, YUY2 |
| Preset Positions | Remote: 10, Serial Port: 255 | Remote: 10, Serial Port: 255 | Remote: 10, Serial Port: 255 |
| Preset Accuracy | Accuracy: 0.1° | Accuracy: 0.1° | Accuracy: 0.1° |
| Preset Call-up Speed | Pan: 0.1°/s~100°/s; Tilt: 0.1°/s~91°/s | Pan: 0.1°/s~100°/s; Tilt: 0.1°/s~93°/s | Pan: 0.1°/s~100°/s; Tilt: 0.1°/s~94°/s |
| Technical data for Microphone: | |
| Item Name | USB/Bluetooth Speakerphone |
| Bluetooth | BT5.0 |
| Battery | 2400mAH(Built-in lithium battery); Music time(up to 8 hours ); Battery life(call) up to 6 hours; Charge time up to 3 hours |
| Connection Type | USB/Bluetooth/AUX |
| Meeting Room Size | 15-30㎡ |
| Meeting With | 3-12 attendees |
| Pickup Range | 5 meters(16.4ft) |
| Mics | 4*Professional Mics Array |
| Microphone Type | Omni-directional(360 degree pickup range) |
| Microphone Sensitivity | -29dB |
| Noise Reduction | yes |
| Full Duplex Audio | Yes |
| AEC | Yes |
| Frequency Range | 100Hz to 22kHz |
| Speaker | 5W/95dB |
| Interface | 1*Type-C, 1*3.5mm audio port |
| System Requirements | Windows 7/8/10 or above, MacOS 10.7 or above, Chrome OS V29.01547 or above |
| Application Support | Software: Skype, FaceTime, Zoom, Microsoft Teams, Hangouts, OBS, Xsplit, etc. |
company Details:
who choose Tongveo?
Shenzhen Tongveo Video Technology Co., Ltd., established in 2013, is one of the leading suppliers of audio and video conferencing solutions in China. Tongveo is a R&D based manufacturer committed to designing, developing and producing affordable full HD video camera with stunning image quality for video collaboration, applied in video conferencing, audio conferencing, education, tele-medicine, broadcasting, recording, courtroom, public safety, church, live-event, Financial facility solution etc. All of our products are compliant with CE, FCC and RoHS standards. We have cooperated with suppliers from all over the world and have won a great reputation. By valuing the R & D department in our company, we are striving to provide better user experience.
one-stop solution
professional team
high quality
Deliver, shipping and serving:
Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase orders, we will ship within 3-7 working days;
FAQ:
Q: Which kind of software does your camera compatible with?
A: Our cameras are compatible with WebEx, Skype for business ,Zoom, Join me, Vidyo, Lync, Go to meeting, Blue Jeans, Cisco, Vmix,etc.
Q: Is your video conferencing camera quality certified?
A: Yes. We can provide the professional certificates for our video conferencing camera, like FCC, CE, ROHS, CSA, etc.
Q: What kind of cameras should I use?
A: It depends on your meeting room spaces, we provide entry-level cameras for huddle rooms, and we also provide 3x, 10x, 12x 20x and 30x AI PTZ cameras for larger meeting rooms, IP keyboard controllers, video mixer switchers for live streaming.
Q: Is it easy to operation?
A: Yes, easy to Plug-in, Driver free, Plug&Play
Q: What is your payment term?
A: We accept Paypal, WU, T/T, L/C at Sight and Alibaba Trade Assurance.
Q: What is your warranty period?
A: The warranty period is 2 years
