pan tilt zoom video camera for large conference room call
video
pan tilt zoom video camera for large conference room call

pan tilt zoom video camera for large conference room call

10x optical zoom USB 2.0 PTZ camera;
Remote control video conference camera;
1080P USB HD video conference camera;
With 69.7 degree wide range fields of view;
Adopt 1/2.2.8 inch high quality sensor;
10 Position Presets by remote control; 64 Position presets by keyboard controller;

Description

Product Overview:

VC300 pan tilt zoom video camera for large conference room call is able to provide full HD 1080p picture quality and output high dynamic images at 30 fps because it is equipped with a 1/2.8'' CMOS sensor. For video conferencing, online distance education, telecommuting, online learning, family chat, medical communication and many other types of needs, it can ensure clear and realistic picture quality. At the same time, its IR remote control supports 10 preset positions, VISCA supports 64 preset positions, and PELCO supports 255 preset positions. This means that the pan tilt zoom video conference camera is very easy to operate and angle to accommodate the entire conference room. Based on strong compatibility, it can be adapted to all mainstream video software on the market, such as Skype, Microsoft Teams, Cisco, and Zoom. Whether you are having a meeting at home or with your team at work, this camera tv mounted video conference camera can ensure that the meeting is completed efficiently and smoothly.








Product feature and application

1. Versatility
This pan tilt zoom video camera for large conference room call supports multi-angle rotation and 10x optical zoom function, so it can meet the diverse needs of various scenes.



2. Remote control
Through the infrared remote control, this video camera for large conference room can remotely control the focus or rotation, so users can save a lot of time and focus more on the introduction of conference content.



3. High definition
Based on Sony's high-quality image sensor, this pan tilt zoom video conference camera can provide conference participants with 1080P image output, and the details and colors of the picture will be very realistic.



4. Easy to install
This video conference camera angle can be easily installed in any position as it comes with a user-friendly base. Whether placed on the table or mounted on the ceiling, you can complete the entire process quickly.



5.Wide application
In addition to being used to complete camera conference calls, this camera can also be used in medical demonstrations, remote teaching and other projects that require high dynamic image quality. Moreover, it has a USB interface and is highly adaptable.













Production details

Pan tilt zoom video camera for large conference room call supports horizontal rotation angle is: -180°~+180°, the vertical rotation angle is: -90°~+90°;

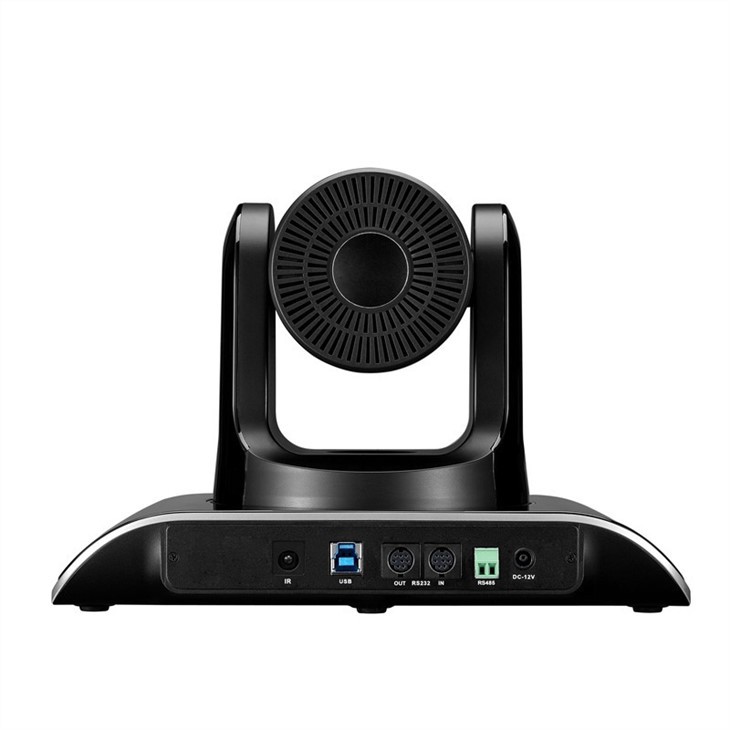

Support infrared control, RS232, RJ45 interface, support VISCA, PELCO-D, PELCO-P protocol, and automatic Identifiable protocol;


Preset position: IR remote support 10 presets, VISCA support 64 presets, PELCO support 255 presets;


USB Plug & play, anyone can easily set up this USB camera and control conferencing and it is more stable, and faster to transfer data, so you can get a better video effect;


Compatible with the ceiling, wall mount and tripod etc, it can easily capture your desired images;


Product qualification

Our certificate: CE, FCC, RoHS etc



Deliver, ship and serving

Delivery:
For sample orders, we have products in stock; same-day shipping when we get the order;
For purchase orders, we will ship within 3-7 working days;
Packaging:
Foam packaging inside; standard carton packaging outside.


What's in the box?

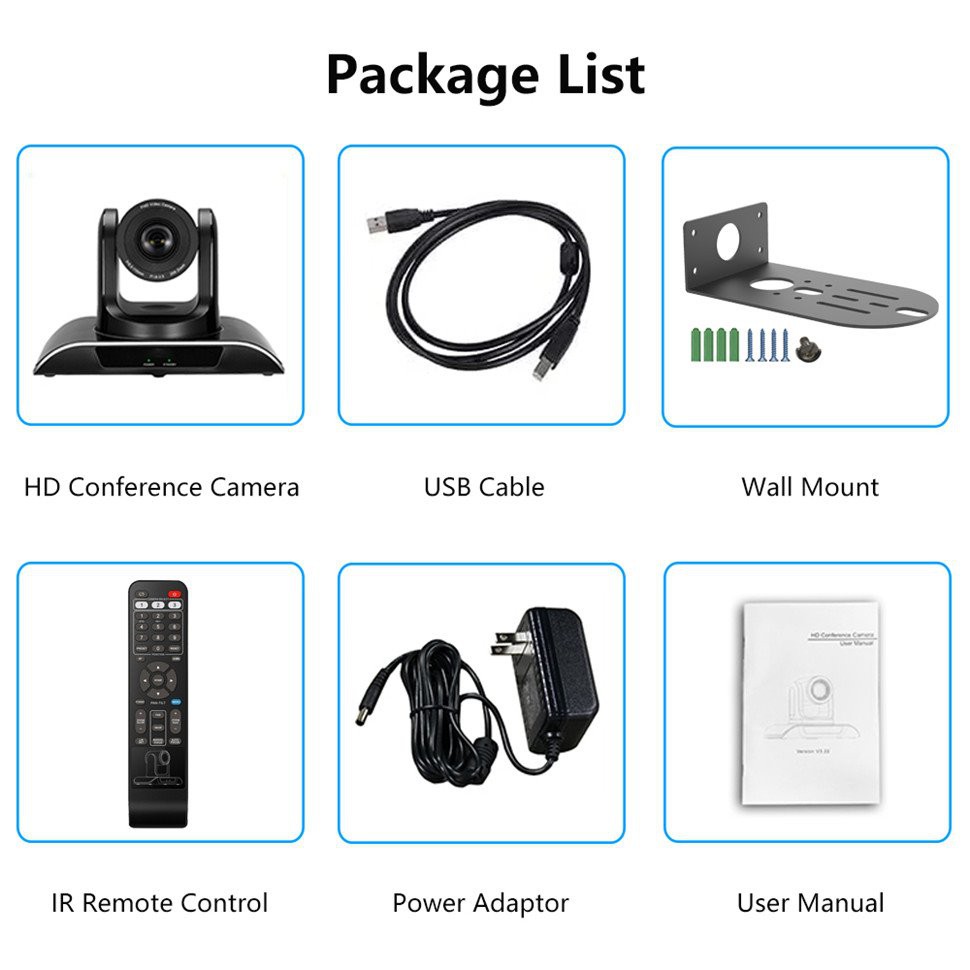

The package included 10x zoom HD conference camera, USB cables, IR remote, Power adapter, Wall mount & screws and users' manual.






Product Parameter

Model

VC300

Sensor

1/2.9 inch CMOS

Effective pixel

2.1 mega pixel

Video system

1080p-30/25, 720p-30/25

Zoom

10x optical zoom

Lens

f=4.9-47.04mm

Aperture

F2.36~2.4

FOV

69.7°

Video output

USB 2.0

Video resolution

1080P (1920 *1080) etc

Signal standard

NTSC/PAL

Preset position

64

Control terminal

RS-232, RS485

Shutter

1/30s~1/10000s, auto

Baud rate

38400/9600bps

Control protocol

VISCA, PELCO-D, PELCO-P(RS-232, RS485)

USB protocol

UVC1.1

Minimal Illumination

0.1Lux

SNR

≥50dB

Video encoding format

MJPEG, YUV

Horizontal rotation

360°(±180°)0.1°/s~100°/s

Vertical rotation

180°(±90°)0.1°/s~80°s

Power supply

DC 12V/2A

Power consumption

12W

Work temperature

0°~+50°

Work humidity

0~95% RH

Product size

247*165*170mm

Product weight

1.15kg/1.95kg(net / gross weight)



FAQ

Q: Are you a manufacturer or trade company?

A: We are a manufacturer and trade together.


Q: Can you produce a tv mounted video conference camera as per our requirements?
A: Yes, OEM is available. We have a professional team to do anything that you want from us.

Q: Is the sample available?
A: Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2day.



Q: Would you have a discount if l have a large order?
A: Yes we could offer different discounts according to your order quantity.



Q: Which field are your products applied to?

A: Our video cameras for large conference room are widely used for conferencing system, online education, church, telemedicine and so on.





For better presentation and communication, it has become an inevitable trend to use high-quality video equipment in various video conferences. Therefore, we manufacture various types of pan tilt zoom video conference camera for sale. Our company has many experts in this field and experienced technicians who can help you design and manufacture cameras of various specifications. If interested, come now to get the best price of tv mounted video conference camera!
