MAC PC video conference meeting camera
20x optical zoom ptz camera;
USB camera for zoom video conferencing;
HDMI/SDI/USB/NDI video outputs;
55.8 wide field of view with no video distortion ;
10 Position presets by remote control; 64 Position presets by keyboard controller;
Description
Product Introduction
UV800 MAC PC video conference meeting camera not only has a 20x optical zoom function, but also provides a horizontal rotation range of -175° to +175° and a vertical rotation range of -90° to +90°. At the same time, it can be matched with Windows and MAC operating systems, and is also compatible with multiple conferencing software or video software such as Zoom, BlueJeans, Amazon Chime, GoToMeeting, etc. In terms of image quality, we chose a high-quality SONY CMOS sensor to ensure that this meeting video camera can output 1080p high-quality images. Therefore, even if the user zooms in several times, details are still clearly visible. Structurally, it uses glass-metal sealing technology to ensure that outside air and dust are isolated to ensure that the lens is not blurry, and the pan/tilt moves smoothly and silently, ensuring that meetings will not be disrupted by noise.

Products Description
1080P HD resolution: clear imaging
This conference usb camera can provide 1080P full HD resolution, so the details of the picture can be clearly displayed to every participant, which is crucial for new product launches and remote teaching demonstrations.
Smooth PTZ operation: precise every step
Based on the PTZ function, this video teleconference camera can provide a smooth and precise experience. Whether panning to capture a wide room view or zooming in on details, every operation will be stable and quiet.
Multiple viewing angles: full control
This conference camera for pc has a rotatable head. It can rotate -175° to +175° horizontally and -90° to +90° vertically, meaning you have complete control over the viewing angle of your meeting regardless of space constraints.

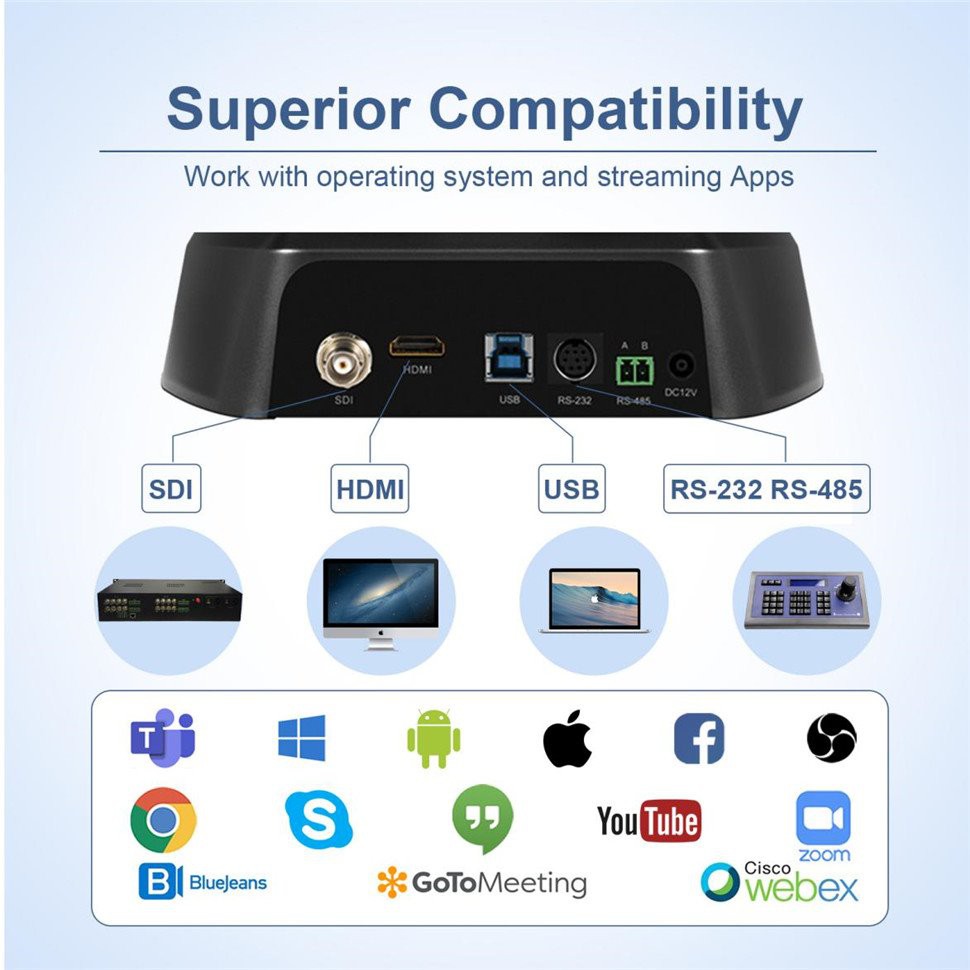

Multiple video output options: flexible connectivity
This video teleconference camera provides multiple video output options, including USB 3.0, HDMI and SDI, and the entire transmission process ensures stable and high-definition picture quality. This design makes the application of this camera almost unlimited.
10 remote control preset positions: easy to operate
Since this MAC video conference camera has 10 remote control preset positions, its operation process becomes more convenient. At the same time, it can be controlled through the remote control, and can also preset 64 positions through the keyboard controller.


Production details
Multi-angle rotation
MAC PC video conference meeting camera supports horizontal rotation angle is: -175°~+175°, the vertical rotation angle is: -90°~+90°;

Multiple control
Support infrared control, RS232 control, Web interface control, support VISCA, PELCO-D, PELCO-P protocol, and automatic Identifiable protocol;

Preset position
Users can set 10 positions by IR remote controller; 64 by keyboard controller;

As easy as Plug & play
Video output: USB 3.0 plug and play, HDMI/SDI and NDI. Anyone can easily set up this SDI camera and control conferencing live streaming;


Product Parameter
|
Model |
UV800 |
|
Sensor |
1/2.9 inch CMOS |
|
Effective pixel |
2.38 megapixel |
|
Video system |
1080p-30/25, 720p-30/25 |
|
Zoom |
20x optical zoom |
|
Lens |
f=5.5-110mm |
|
Aperture |
F1.6-3.5 |
|
Horizontal angle |
55.8°(W)-3.2°(T) |
|
Vertical angle |
32.2°(W)-1.8°(T) |
|
Diagonal |
61°(W)-3.64°(T) |
|
FOV |
55.8° |
|
Video output |
USB 3.0 |
|
Video resolution |
1080P (1920 *1080) etc |
|
Signal standard |
NTSC/PAL |
|
Preset position |
64 |
|
Control terminal |
RS-232, RS485 |
|
Shutter |
1/30s~1/10000s, auto |
|
Baud rate |
38400/9600bps |
|
Control protocol |
VISCA, PELCO-D, PELCO-P(RS-232, RS485) |
|
USB protocol |
UVC1.1 |
|
Minimal Illumination |
0.1Lux |
|
SNR |
≥50dB |
|
Video encoding format |
MJPEG, YUV |
|
Horizontal rotation |
350°(±175°)0.1°/s~100°/s |
|
Vertical rotation |
90°(±45°)0.1°/s~80°s |
|
Power supply |
DC 12V/2A |
|
Power consumption |
12W |
|
Work temperature |
0°~+50° |
|
Work humidity |
0~95% RH |
|
Product size |
247*165*170mm |
|
Product weight |
1.46kg/2.85kg(net / gross weight) |
FAQ
Q: Where is your factory located?
A: In Shenzhen, China.
Q: When was your factory established?
A: Since 2013.We have specialized in the manufacturing of mac pc video conference meeting camera for many years.
Q: What about the lead time for mass production?
A: 15-20 working days for mass production. It depends on your quantity, and we will try our best to meet your needs.
Q: What is your main market?
A: Our video teleconference camera has been sold to Europe, North America, South America, Australia, the Middle East and other countries and regions.
This conference camera for pc is designed to take your video conferencing to new heights. If you are looking for a remote video solution that can be used at home and office, we, one of the leading conference usb camera manufacturers and suppliers in China, can give you an ideal product! Over the years we have supplied cameras to a number of businesses and individuals to suit different requirements and they have been well received. Contact us now to get the best price of meeting video camera and experience its benefits!
