Conference Camera For Tv



The Tongveo VL20N(NDI) NDI office conference camera, with 20x optical zoom, eqiuipped with latest NDI/HX, SDK, PoE, USB 3.0, IMX327 1/2.8" CMOS Sony Sensor, 1080P full HD resolution. It delivers sharp video, outstanding color, and exceptional optical accuracy, built-in AI technology optimizes light balance to emphasize faces and render natural-looking skin tones even in dim or backlight conditions.







Model	VL20N(NDI)
Sensor	Sony IMX327 1/2.8" CMOS
Effective pixel	2.07MP
Video system	1080p@60/50/30/25fps, 720p@60/50/30/25fps,640*480P@30fps,320*240P@30fps;YUY2/NV12/H.264/H.265/MJPG)
Zoom	20x optical zoom
Lens	f=5.5-110mm
Aperture	F1.6-3.5
Diagonal Angle	61°(W)-3.64°(T)
Video output	USB 3.0, HDMI
Backlight Compensation	Support
SNR	>50dB
Digital Noise Reduction	2D & 3D Noise Reduction
Signal standard	NTSC/PAL
I / O Interface
Video Interfaces	HDMI, TYPE-C, RJ45
Video Compression Format	H.264, H.265, MJPG, YUY2
LAN	10M/100M adaptive Ethernet port; Support POE IEEE802.3af
Network Protocol	NDI|HX2,RTSP, RTMP, ONVIF, GB28181; Support VISCA Over IP
Control protocol	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
Control Protocol	UVC1.1
Minimal Illumination	VISCA/Pelco-D/Pelco-P; Baud Rate: 38400/9600/4800/2400
Control Interface	≥RS232 (input only), RS485, TYPE-C(UVC1.1), RJ45
PTZ Parameter
Pan/Tilt Rotation	±175°, -90°～+90°
Pan Control Speed	0.1 -80°/sec
Tilt Control Speed	0.1 -60°/sec
Preset Number	User can set up to 255 presets (10 presets by IR remote)
Operation Systems	Windows 7, Windows 8.1, Windows 10, Windows 11; Android, Mac OS™ 10.10 or higher, Linux (Required to support UVC.)





VL20N NDI office conference camera can be used for video conferencing, church live streaming, colleague lecture, medical care, church and digital court; Compatible with most video and audio software;

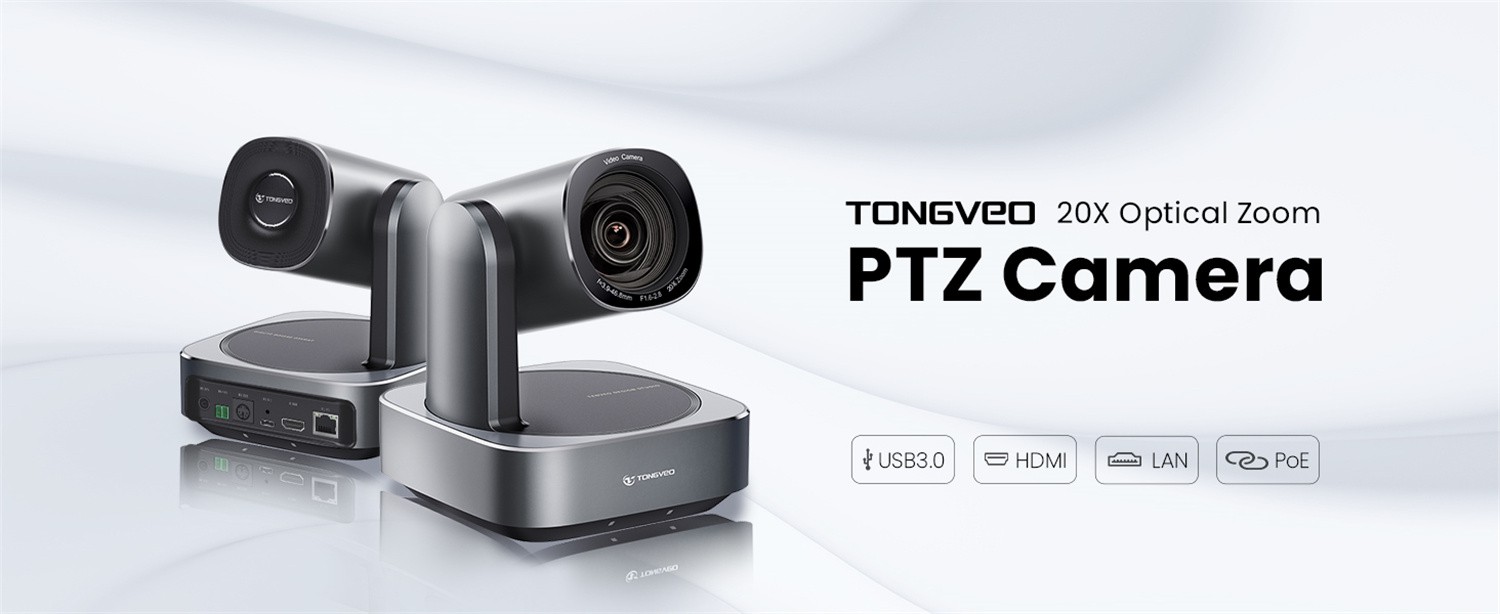

20X Zoom HDMI PTZ Camera

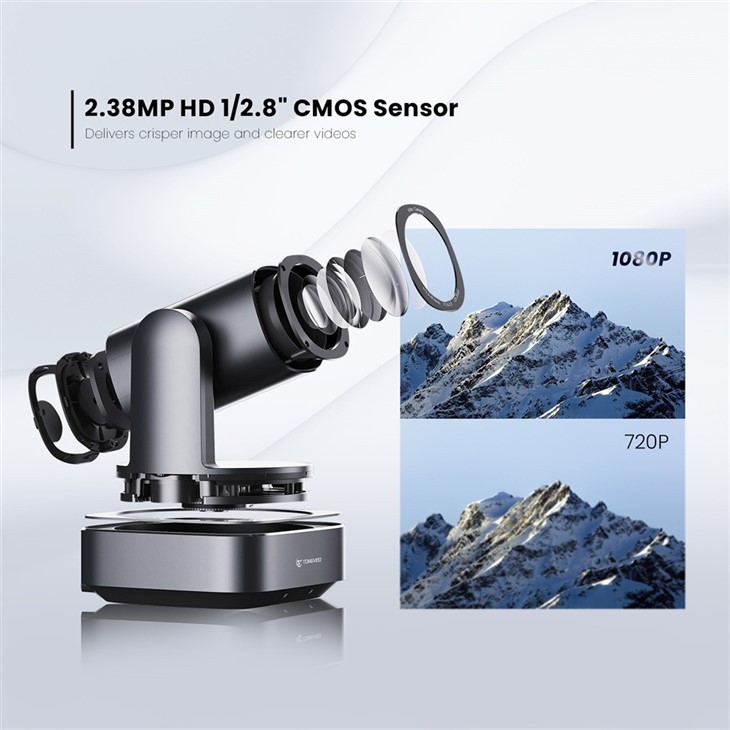

Vl20N NDI office conference camera apply 1/2.8" HD CMOS sensor, effective pixels up to 2.38 Megapixels,maximum resolution up to 1920×1080,True to Life Colors and pretty picture quality,1080P video signals up to 60pfs,presenting clear and realistic HD video, 20X Optical Zoom with 61°field of view,Accurate and stable autofocus. 20XZoom live streaming camera is suitable for Church, Worship, Conference, Events, Online Teaching, Sport, Hospital, Live Broadcast, Studio streaming.





High SNR CMOS sensor can decrease image noise effectively under low light. 2D&3D noise reduction algorithms also are applied to reduce image noise greatly. Even under ultra-low light, the image is still clean and clear, and Video S/N is ≥55dB.

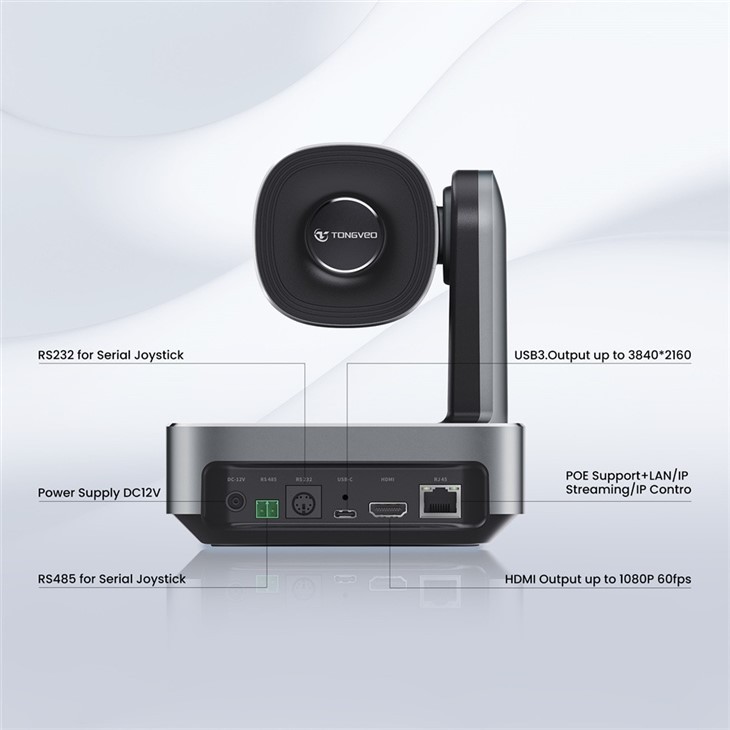

HDMI+USB+LAN Outputs

Our Conference room Camera has USB HDMI, and IP video outputs, which can simultaneously output 1080p video at 60fps from HDMI,USB and IP streaming, effective transmission distance up to 328ft via Ethernet, Support PoE (Power over Ethernet),you need a PoE switch to connect, Video Compression Format: YUV, MJPEG, H.264 and H.265.the PTZ camera can live streaming on OBS,Vmix, Facebook, Youtube,Compatible with Skype,Temas, google Hangouts, GoToMeeting conferencing Software





IP LIVE STREAMING

HD Video streaming directly transits from RTSP, RTMP(S), and SRT to online streaming service, you can secure transmission video with low latency, the PTZ camera can power, maintaining the integrity and quality of video and control all over a single Ethernet cable (POE 802.3af), Supports H.265/H.264 encoding (LAN), which makes the picture more smooth and clear under low bandwidth, You can power, control, set up and preview this webcam over a single Ethernet Cat5/6 cable.





Smooth and High-speed PTZ Control

The camera has a compact metal appearance,horizontal rotation (-175°to +175°) and vertical rotation (-90°to 90°), multiple control methods such as the included IR remote control, or using RS232 and RS485 serial ports (serial joystick). 10 presets via IR remote control, 255 presets via VISCA/Pelco-D/Pelco-P, and Compliant with TCP/IP, RTSP, RTMP,GB28181 and other network protocols, can support advanced functions of live streaming.





The camera is compatible with OBS and supports full control through the VISCA Serial protocol. However, please be aware that control through VISCA TCP or VISCA UDP will be partial limited. While the camera works with Bitfocus/Companion, please note that there are currently limitations on the preset function.





Compatible with most of Video and audio conference system, such as Skype, MS Teams, Google meet, Webex, Vmix, Zoom, Youtube and Facebook;







Our certificate: CE, FCC, RoHS etc





Delivery:
For sample orders, we have products in stock; same day shipping when we get the order;
For purchase orders, we will ship within 3-7 working days;



Packaging:
Foam packaging inside; standard carton packaging outside.

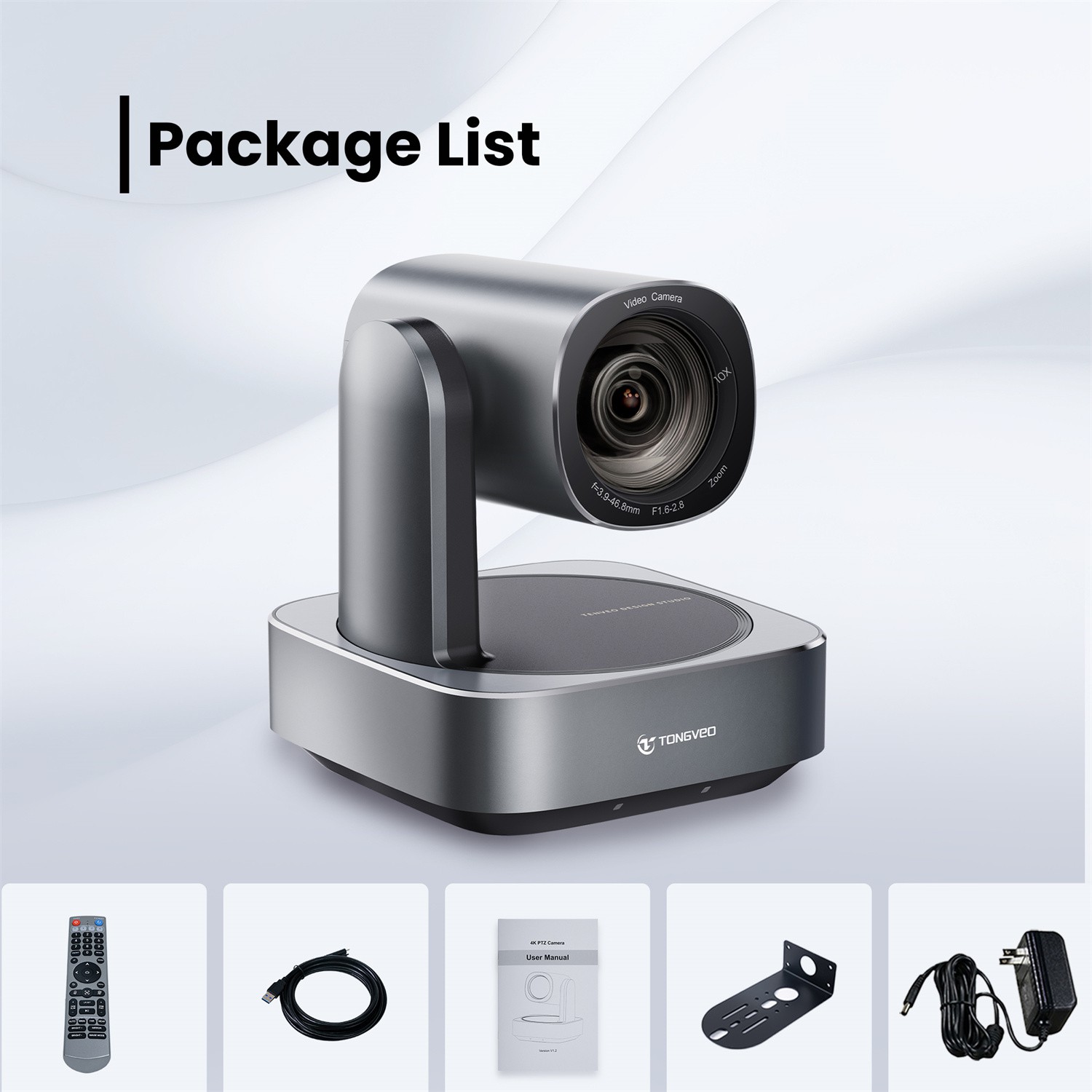

What's in the box?

The standard carton included with 1 pcs of camera, IR remote, USB cable, wall mount, power adapter, and user's standard;
