IP Ptz Camera Controller



Product Name	ip ptz camera controller
Model No	KB200pro
CHIP	ssd202d
SYSTEM	Linux
Max equipment	256
Decoding	H.265, H.264
RESOLUTION	MAX 1080P for 1 channel:1920*1080@30fps
PROTOCOL	VISCA over IP, NDI Control,Pelco-P,Pelco-D, Sony VISCA Compatible, ONVIF
Camera Control	Exposure Selection: YES White Balance: YES Backlight Control: YES Display status of WB, Iris, Gain, Shutter, Focus: YES Focus Model Selection: YES Auto Focus/Manual Focus: YES
User Interfaces	Display: LED Speed Control: YES Zoom Rocker: Yes Joystick Zoom Ring: Yes Programmable function buttons: 6
Joystick	4D
Output	RS422(Reserved), RS232(Development port), RJ45
Accessories	Knob, Silicone button
Beep	On/off
Display	TFT LCD 720*1280
Max camera control	Max 255 with multiple protocols including NDI/IP
Power consumption	≤5W
POWER	DC12V-2A POE
Storage Condition
Work temperature	-10℃~55℃ / 14°F~131°F
Work humidity	20%~80% frostless
Storage temperature	-10℃~60℃ / 14°F~140°F
Storage humidity	0~90% frostless
Product Weight	1.83kg/2.45kg( (net / gross weight))





Tongveo KB200PRO ip ptz camera controller, connected with TONGVEO PTZ cameras, it can be used for business meeting, government, online interview, group trainning, large classroom, live streaming, tele-medical, and church.

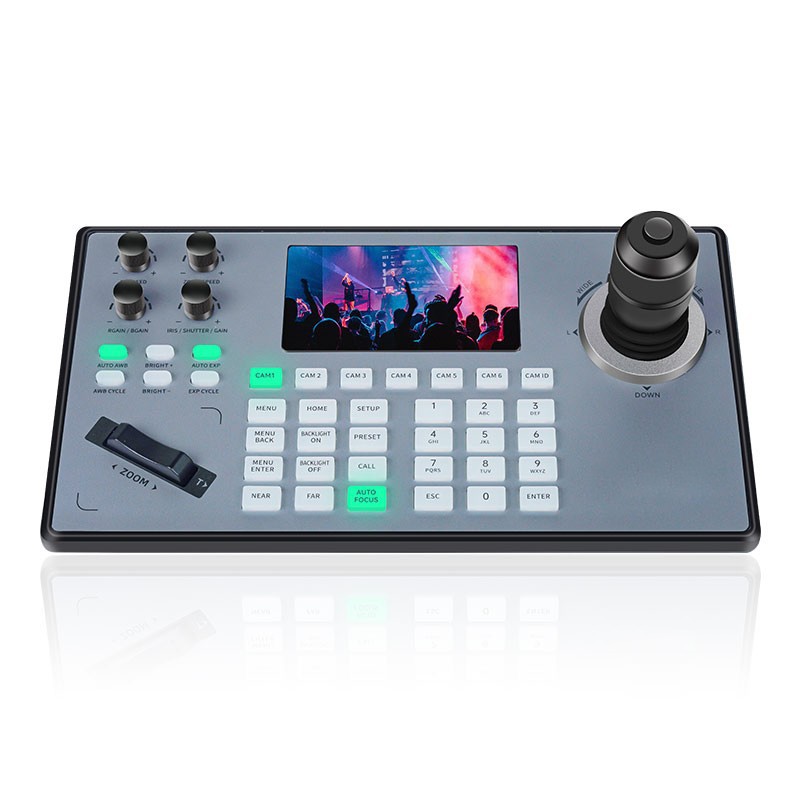

5 inch LCD Screen, supporting Real-time Monitoring and Image Decoding

The KB200PRO ip ptz camera controller has a 5 inch lCD screen to monitor real-time video, supporting image decoding with a crisp resolution of 720*1280 pixels. ldeal for applications requiring compact displays with high-quality visuals.

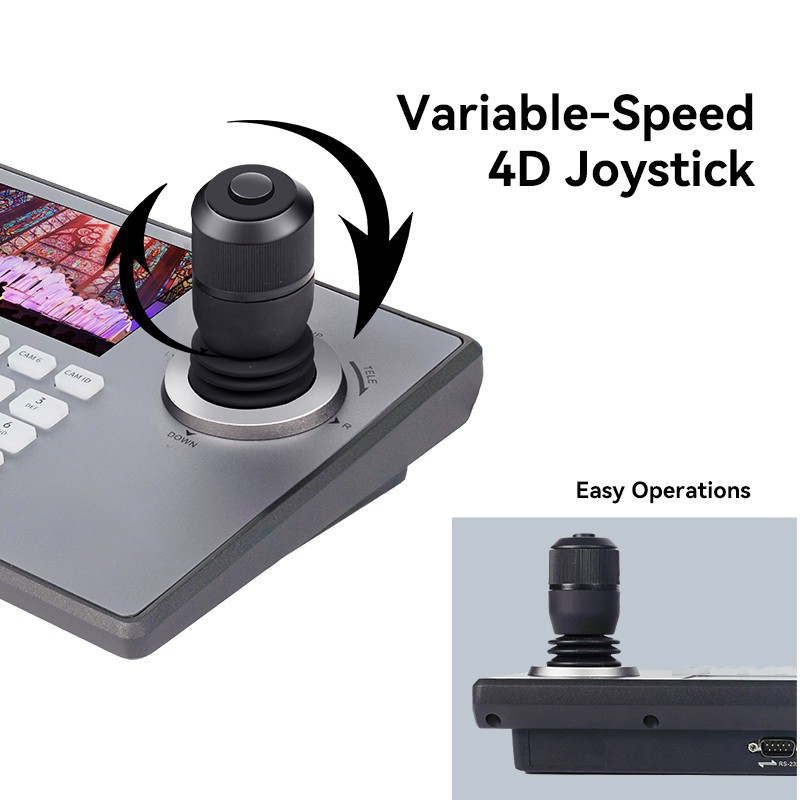

Responsive PTZ joystick with 8-direction movements at variable speed provides full control and low latency over pan-tilt-zoom, The PT2 camera joystick is built with full metal and scratch-resistant surface protector. it has simple elegant appearance with ergonomics design.





Single Cable Simplicity- PoE Support, Multiple Control and Network Protocols

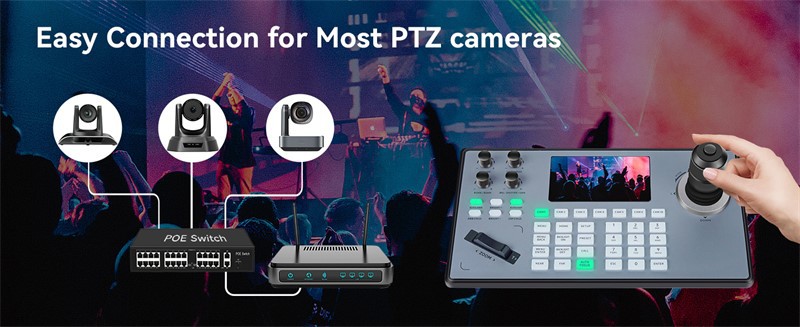

KB200 Pro ip ptz camera controller supports Power Over Ethernet (PoE). Take control of cameras all across your network with a single Ethernet cable. Use PoE network switch to simplify your joystick setup.





The joystick controller supports multiple control protocols: ViSCA, Pelco via serial RS232 and RS422/RS485, ONVIF, NDl and Visca over IP. Visca is fully compatible.





Multiple Use Scenes with PTZ Cameras

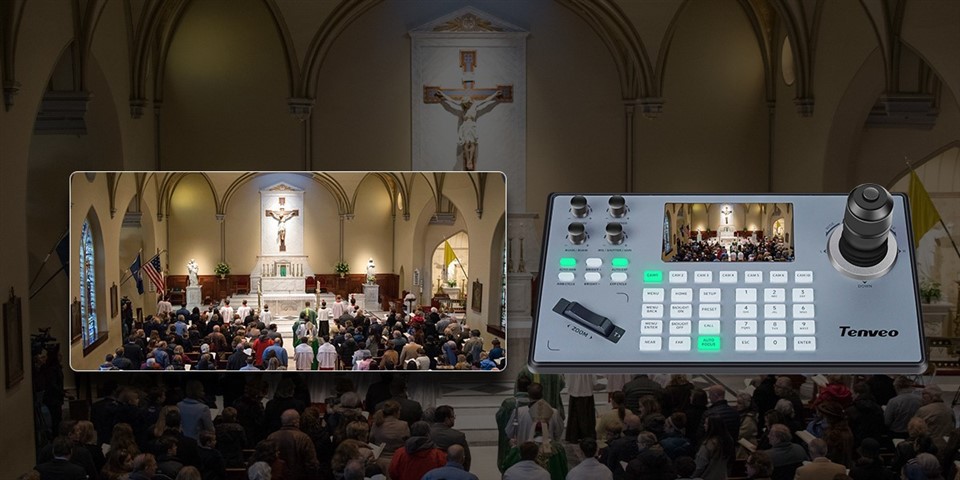

KB200pro ip ptz camera controller is designed for simple, quick and accurate control of PTZ cameras and can be used in various important conferencing venues, such as government and telecommunications departments.public security, procuratorates, courts, banks, securities, insurance, education, taxation







Our certificate: CE, FCC, RoHS etc

Deliver, shipping and serving

Delivery:

Sample orders: Within 1-2 days when we receive your order and payment;
For purchase orders, we will ship within 3-7 working days;
Packaging:
Foam packaging inside; standard carton packaging outside.





Q: Are you trading company or manufacturer? A: We are professional manufacturer specialized in USB ptz cameras, HDMI/SDI/USB ptz cameras, webcams, video & audio conference kits, and microphones.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: Can you help with the design?

A: Yes, Simply design free, special design need to pay.



Q: Why choose TONGVEO?

A: TONGVEO has a young international team with many year' experience cooperate with more than 30 countries in video & audio conference system.

Tongveo focus on design and supply innovation, suitable and competitive conferencing systems.
