HDMI SDI HD PTZ 20x Optical Zoom Camera for Video Conference

Product Introduction:

The HDMI SDI HD PTZ 20x Optical Zoom Camera for Video Conference is a high-definition camera for video conferencing. It has attracted much attention and favor because it is widely used in various fields such as business meetings, distance education, and medical diagnosis. This product has a built-in high-definition camera and can support high-definition video streaming. Its importance and role are to promote more efficient communication between enterprises and teams, improve work efficiency, and reduce communication costs. Finally, if you are looking for video conference room camera manufacturers and suppliers, please feel free to contact us for the best price and more details about the 20x optical zoom ptz camera.





Feature

Dual stream output
The ptz conference camera support the simultaneous output of dual streams with different bit rates, one of which is used for recording, live broadcast or remote viewing, and the other for video conferencing, so that customers with different needs can be met.



Electric zoom
We can adjust the focal length and focus through remote control or manual operation to adapt to the size and placement of different conference rooms.



Various picture modes
The ptz conference camera hdmi have a variety of built-in picture modes, including panoramic mode, split-screen mode, alternating near and far modes, etc., allowing users to choose the most appropriate picture effect according to actual needs.



Low light adaptation
We use high-sensitivity sensors and low-light adaptation technology to maintain clear image quality in darker environments, providing users with a better video conferencing experience.



No driver required
Our plug-and-play design eliminates the need to install drivers, making it quick and easy to set up and use.

Product Parameter

Model	VC612

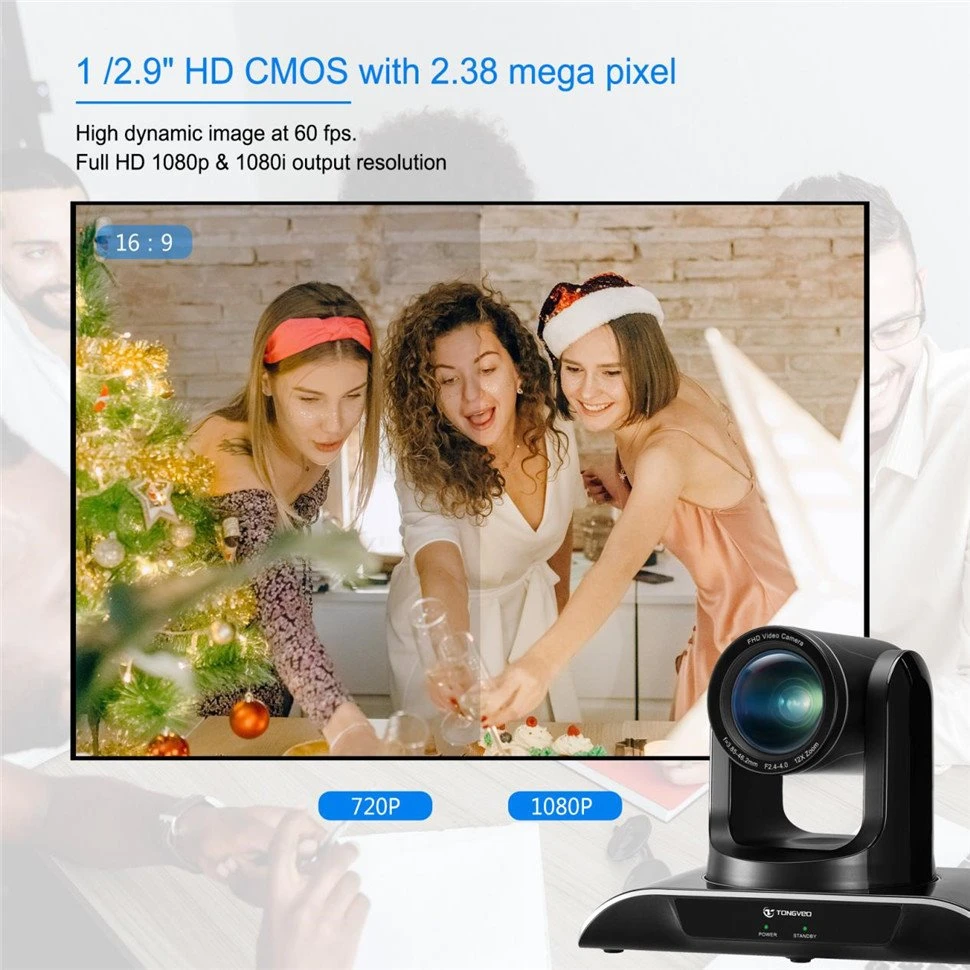

Sensor	1/2.9 inch CMOS
Effective pixel	2.38 mega pixel
Video system	1080p-30/25, 720p-30/25
Zoom	10x optical zoom
Lens	f=3.85mm～46.2mm
Aperture	F2.4～F4.0
Horizontal angle	73.0°(W)-6.97°(T)
Vertical angle	43.1°(W)-3.92°(T)
Diagonal	81.1°(W)-7.99°(T)
FOV	72.5°
Video output	USB 2.0
Video resolution	1080P (1920 *1080) etc
Signal standard	NTSC/PAL
Preset position	64
Control terminal	RS-232, RS485
Shutter	1/30s～1/10000s, auto
Baud rate	38400/9600bps
Control protocol	VISCA, PELCO-D, PELCO-P(RS-232, RS485)
USB protocol	UVC1.1
Minimal Illumination	0.1Lux
SNR	≥50dB
Video encoding format	MJPEG, YUV
Horizontal rotation	350°(±175°)0.1°/s～100°/s
Vertical rotation	120°(±60°)0.1°/s～80°s
Power supply	DC 12V/2A
Power consumption	12W
Work temperature	0°~+50°
Work humidity	0~95% RH
Product size	247*165*170mm
Product weight	1.46kg/2.85kg(net / gross weight)



Product feature and application

HDMI SDI video conference camera can be used for lecture capture, operating room, university classroom, tele-medicine, video conference, church activities, live streaming and home video.

Compatible with most of the mainstream software such as Skype, Microsoft Teams, Google Meet, Cisco, Zoom, Vmix, Amazon Chime, GoToMeeting, etc.





































Production details

12x Optical Zoom 1080P HD Video Camera; FOV: 72.5°;

Supports horizontal rotation angle is: -170°~+170°, the vertical rotation angle is: -90°~+90°;

























Support infrared control, RS232 control, RJ45 Web interface control, support VISCA, PELCO-D, PELCO-P protocol, and automatic Identifiable protocol;

Preset position: 10 by IR remote controller; 64 by keyboard controller;

































Plug & play

It realizes image transmission and PTZ control simultaneously via USB cable guarantees the stability of work;

Compatible with the ceiling, wall mount and tripod etc, it can easily capture your desired images;

Product qualificationS

Our certificate: CE, FCC, RoHS etc



Deliver, ship, and serving

Delivery:
For sample orders, we have products in stock; same-day shipping when we get the order;
For purchase orders, we will ship within 3-7 working days;
Packaging:
Foam packaging inside; standard carton packaging outside.

FAQ

Q: Can you do design for us?

A: Yes. We have a professional team with rich experience in gift box design and manufacturing. Just tell us your idea and we will help you turn your idea into the perfect box.



Q: How long can I expect to receive the sample?

A: After you pay the sample fee and send us the confirmation documents, the sample will be ready for delivery within 1-3 days. Samples will be sent to you by express and arrive within 3-5 days.



Q: What about the delivery time for mass production?

A:Honestly, it depends on the order quantity and the season you place the order.It is always 25-28 days based on general orders.



Q: What are your delivery terms?

A: The HDMI SDI HD PTZ for Video Conferences accept EXW, FOB, CFR, CIF, etc. You can choose the one that is most convenient or cost-effective for you.



Q: What is the payment method?

A: 1) TT or Western Union for trial order

2)ODM, OEM orders, 30% deposit, 70% T/T before delivery.

We are a factory and we can guarantee our prices are first-hand, high quality and competitive prices.
